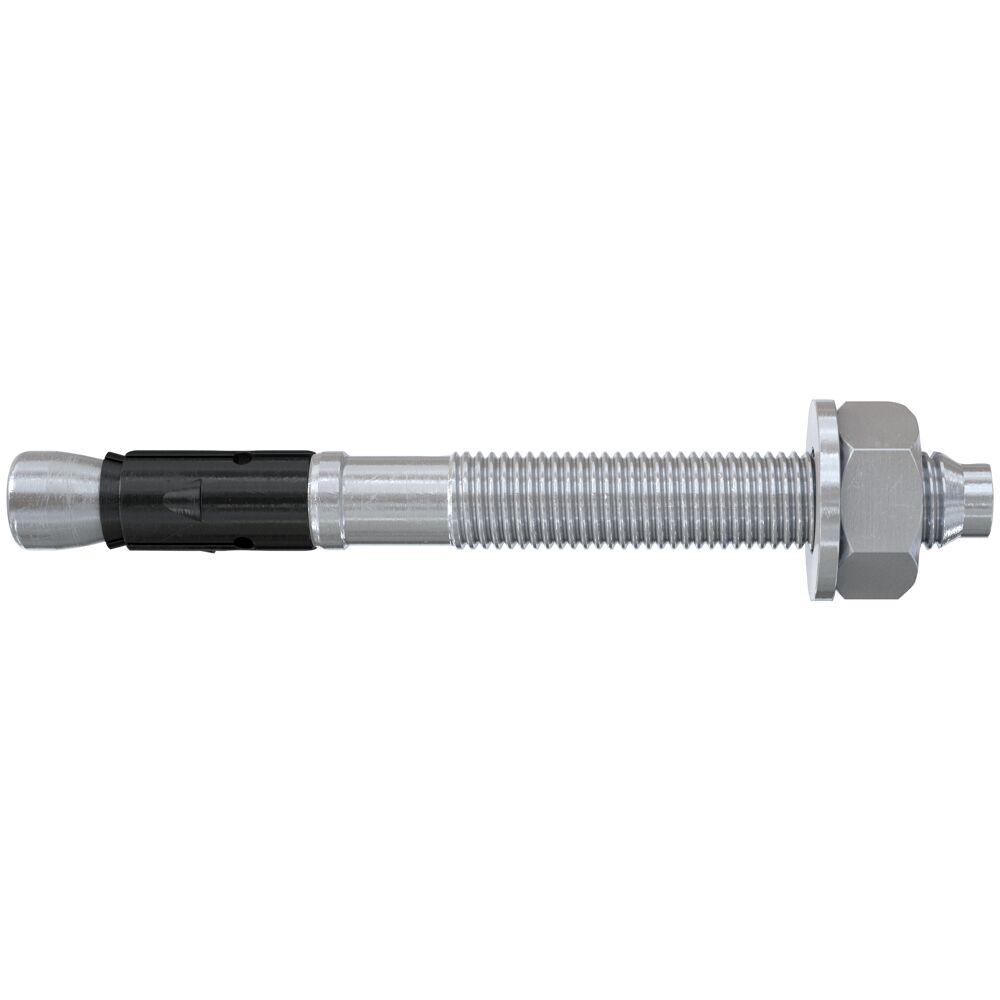

Bolt anchor FAZ II Plus 10/50, 10x135 mm 20 vnt.

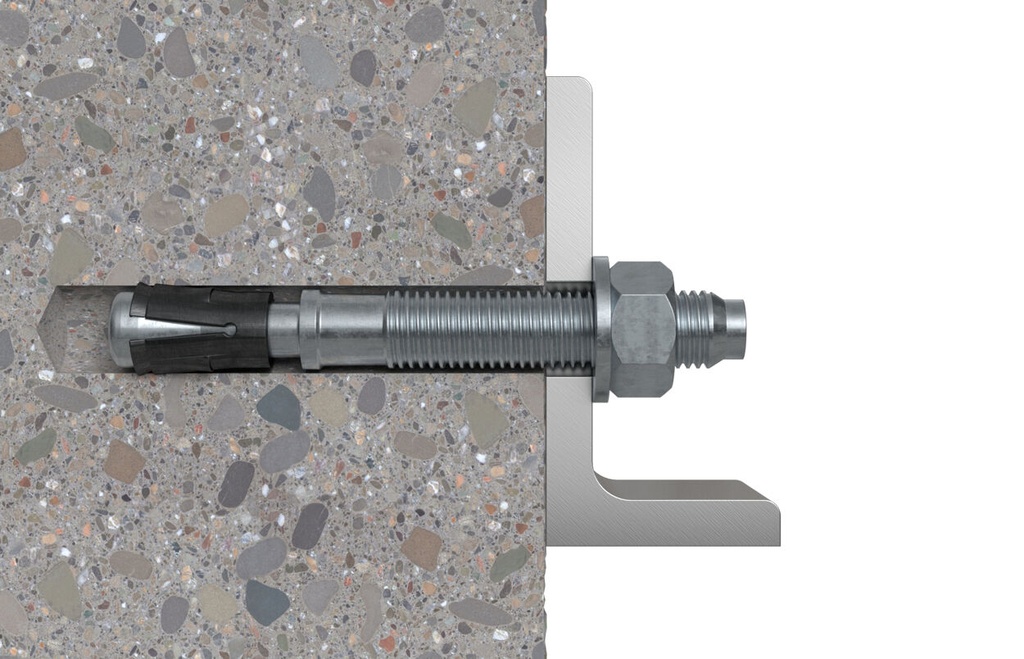

The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile strengths and a wide range of applications. Heavy loads can be secured in cracked concrete using the steel anchor.

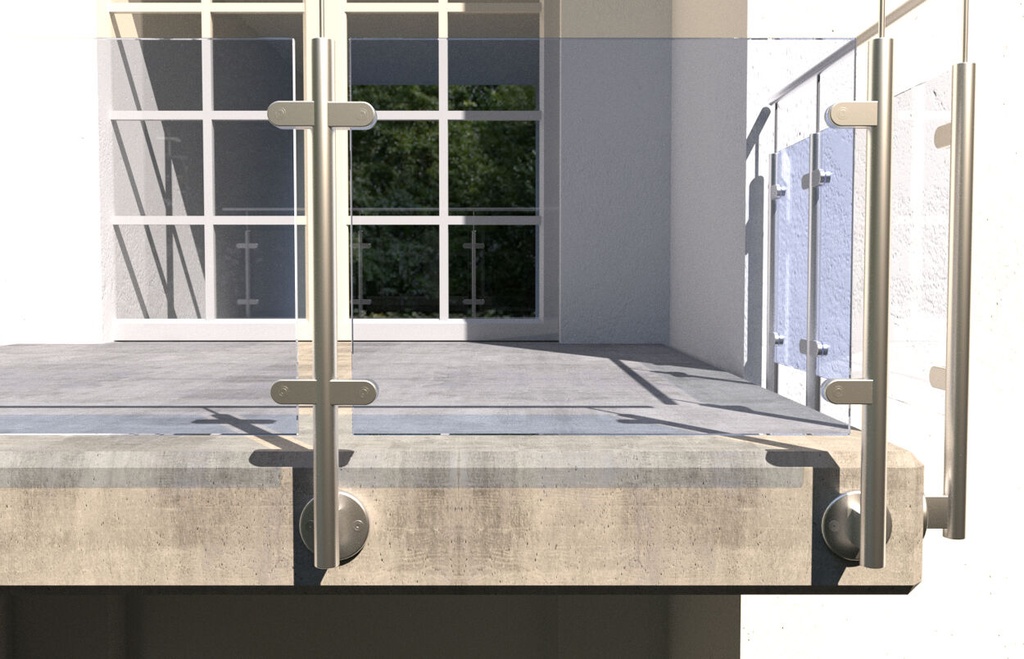

For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles.
• Quick and easier assembly without the need for drill hole cleaning (M8-M24).
• The fast installation process of the FAZ II Plus provides an efficient fixing solution for dynamic applications with low load cycles (M16-24) with an immediately loadable fixing point.
• The FAZ II Plus allows the absorption of high seismic loads of performance category C1 and C2 for diameters M10-M24 with and without the use of the filling disc FFD at installation.
• Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.
• The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.
| Manufacturer: Fischer |
| Fastener diameter, mm: 10 |
| Fastener length, mm: 135 |
| Fastener type: Anker |
| Purpose of the fastener: Concrete, Natural stone |
| Socket size: 17 mm |
| Socket type: 6 angles |
Barcode:
4048962462074
Unit of Measure Name:
pak20
