Voltage tester ZAC 1000 PLUS, ADA Instruments
Product Code:
28-А00689
Non-contact voltage detector ADA ZАС 1000 PLUS is designed to detect the presence of voltage in outlets, lighting fixtures, circuit breakers, wires and cables.
• Detection range. Detector ADA ZАС 1000 PLUS detects AC voltage from 12 to 1000V (50/60 Hz).

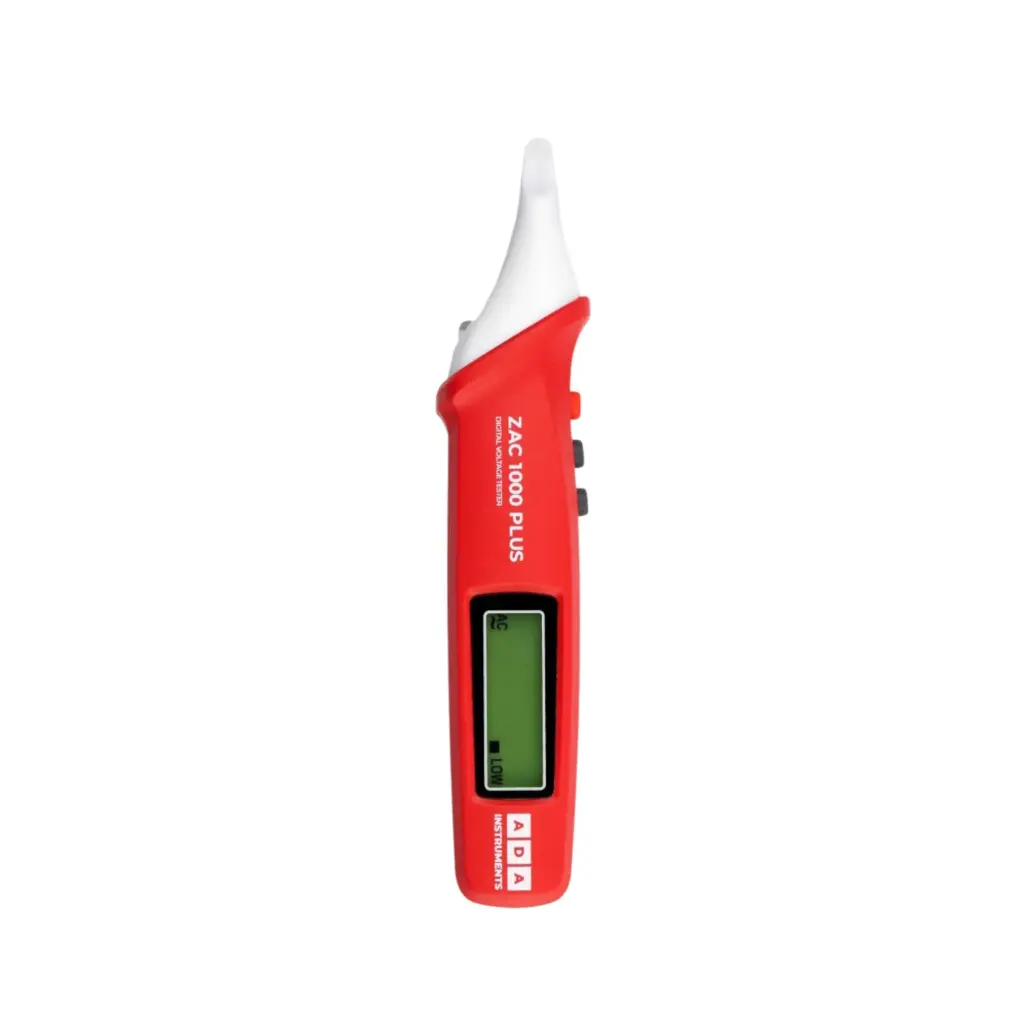

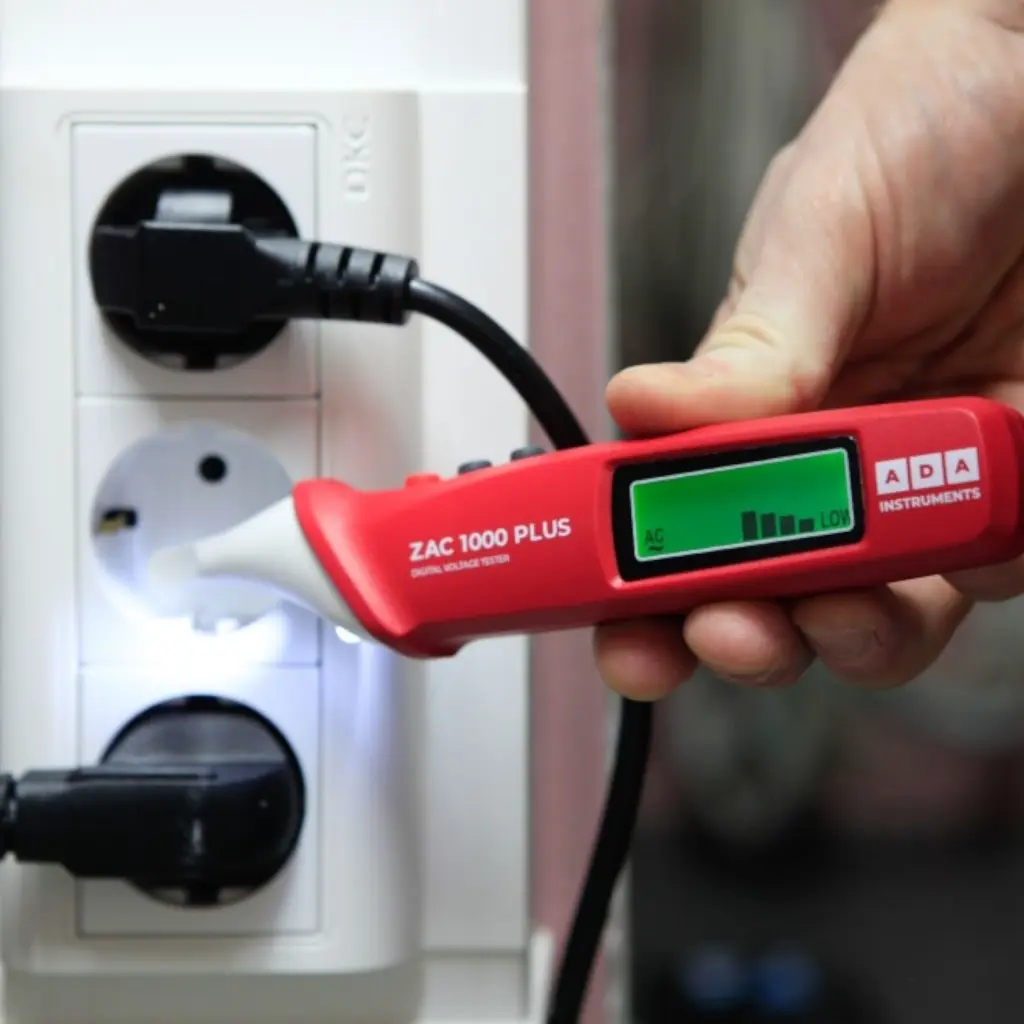

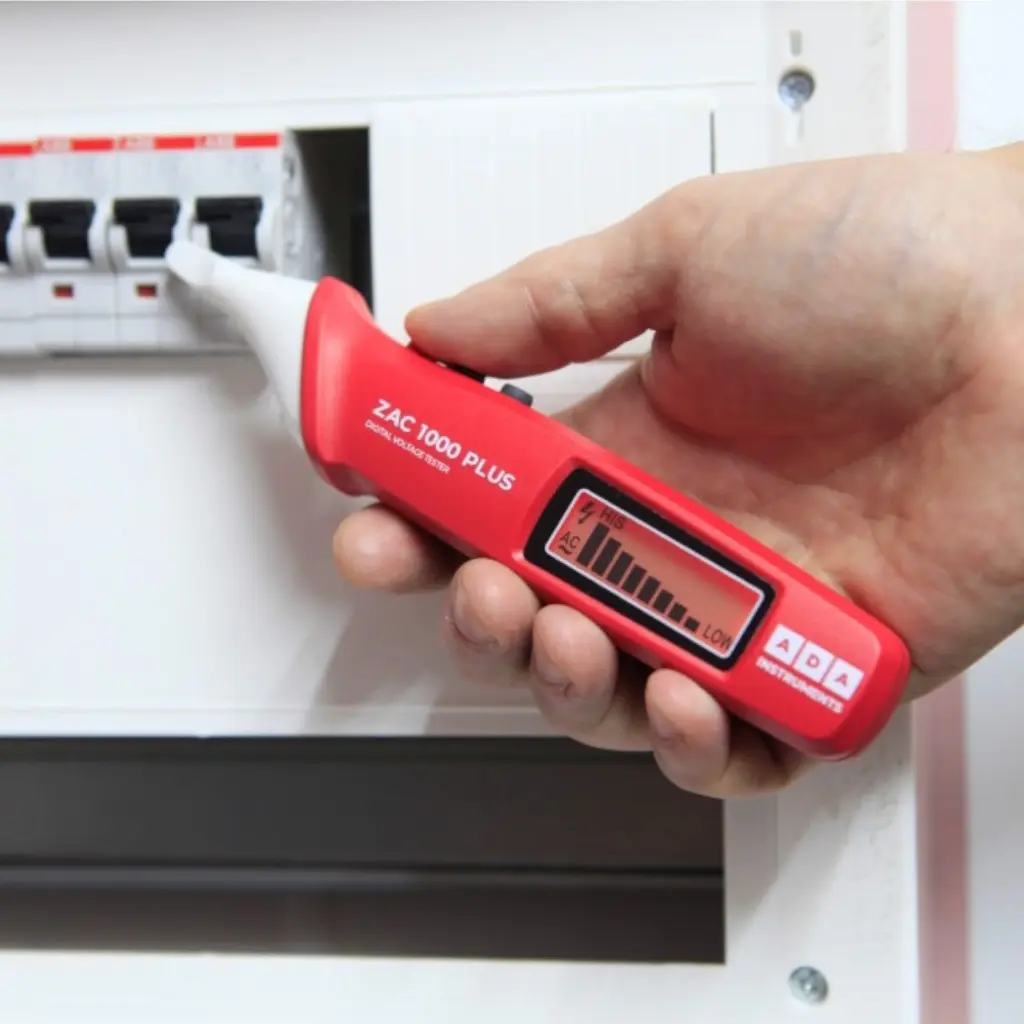

• Detection alarm. When approaching a voltage source, an audible signal will sound. The closer the ADA ZAC 1000 PLUS sensor is to the source, the more frequently the beep will sound. The display shows the scale LOW - HIS indicating the distance to the voltage source. LOW - far, HIS - close. The red color of the display indicates the presence of AC voltage near the sensor of the detector. Green color indicates the absence of the voltage.

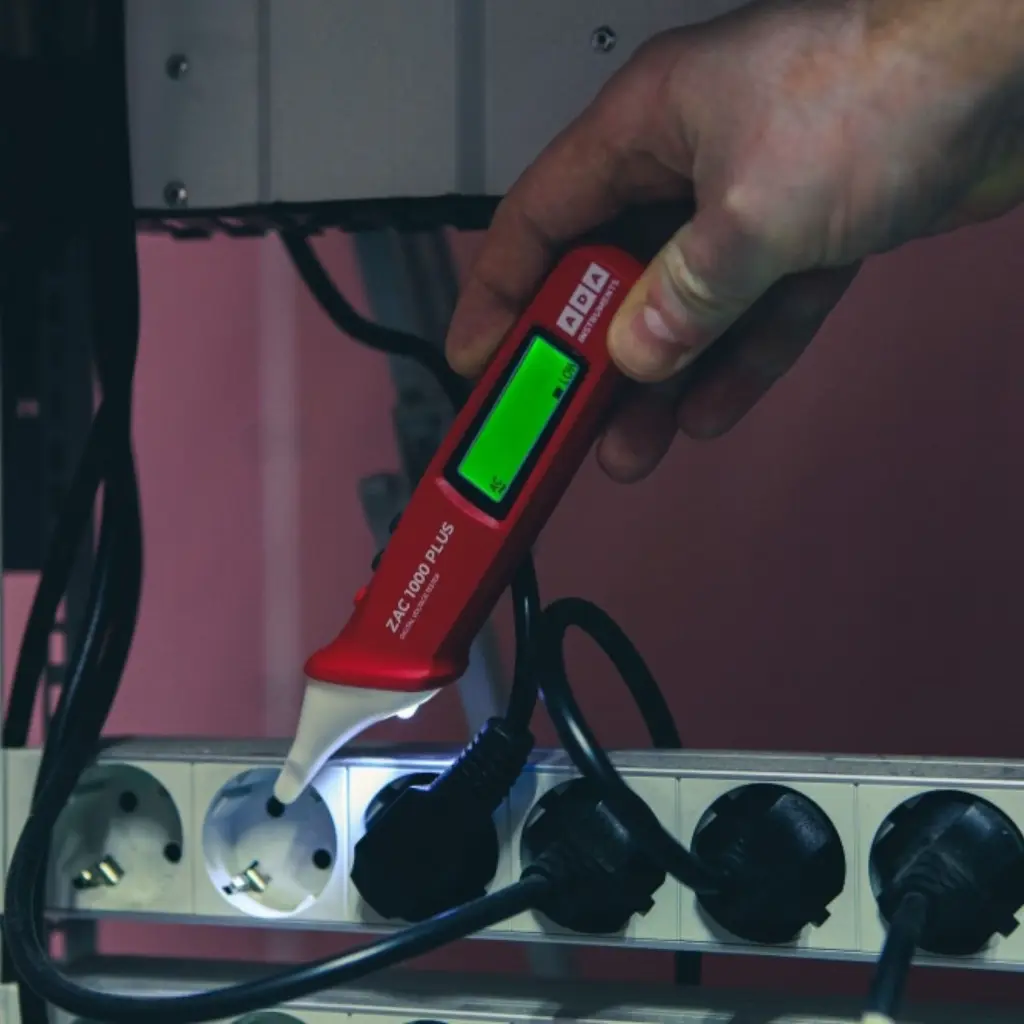

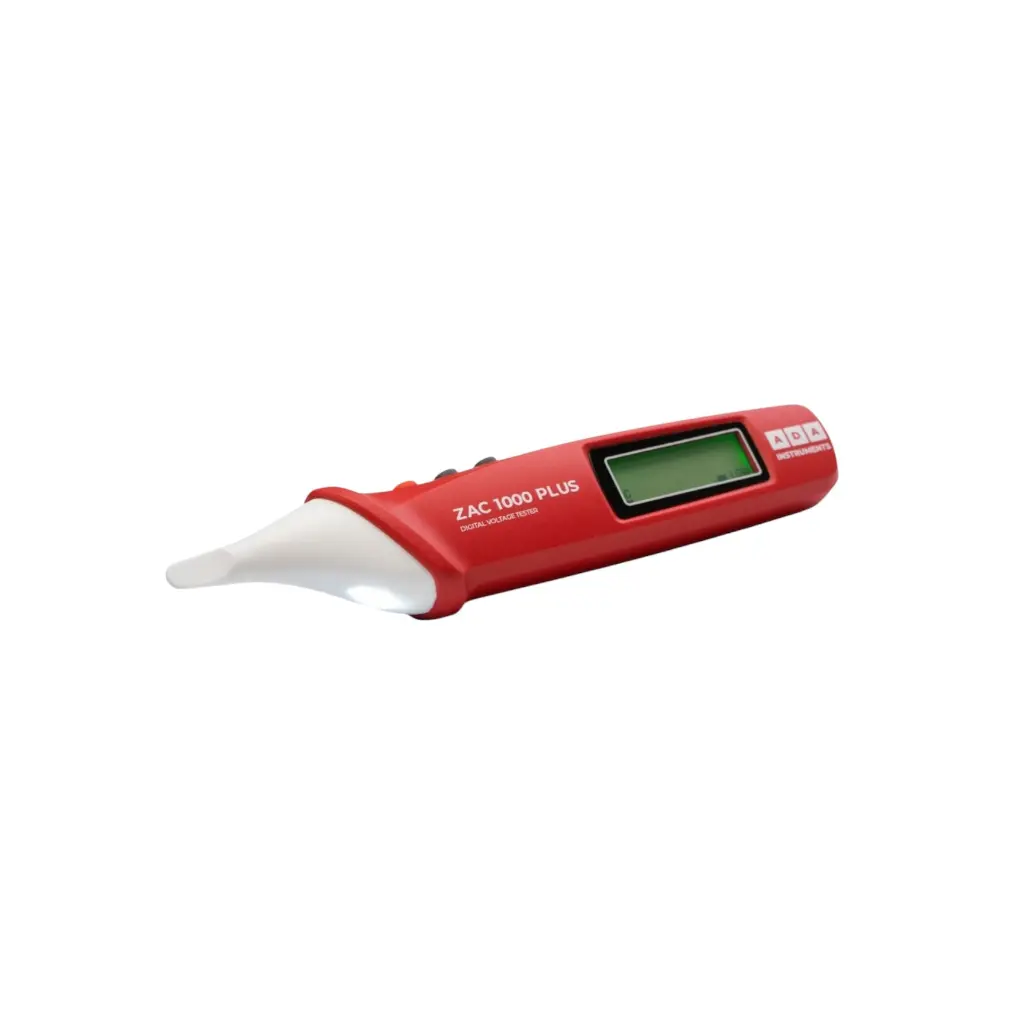

• Built-in flashlight. Detector ADA ZАС 1000 PLUS has a built-in bright flashlight.
• Search for hidden wiring. The ADA ZAC 1000 PLUS detector can be used to locate live electrical wires in walls, floors and ceilings. Attention: The device cannot detect voltage in an armored cable or in a cable that is in a metal case.
• Adjustable search sensitivity. To obtain an accurate result of the ADA ZAC 1000 PLUS detector, when searching for hidden wiring, you can switch to high sensitivity mode. When this mode is activated, it will be highlighted in yellow.
• Detection range. Detector ADA ZАС 1000 PLUS detects AC voltage from 12 to 1000V (50/60 Hz).
• Detection alarm. When approaching a voltage source, an audible signal will sound. The closer the ADA ZAC 1000 PLUS sensor is to the source, the more frequently the beep will sound. The display shows the scale LOW - HIS indicating the distance to the voltage source. LOW - far, HIS - close. The red color of the display indicates the presence of AC voltage near the sensor of the detector. Green color indicates the absence of the voltage.
• Built-in flashlight. Detector ADA ZАС 1000 PLUS has a built-in bright flashlight.
• Search for hidden wiring. The ADA ZAC 1000 PLUS detector can be used to locate live electrical wires in walls, floors and ceilings. Attention: The device cannot detect voltage in an armored cable or in a cable that is in a metal case.
• Adjustable search sensitivity. To obtain an accurate result of the ADA ZAC 1000 PLUS detector, when searching for hidden wiring, you can switch to high sensitivity mode. When this mode is activated, it will be highlighted in yellow.
| Manufacturer: ADA Instruments |
Barcode:
4897128770061
Unit of Measure Name:
Units
