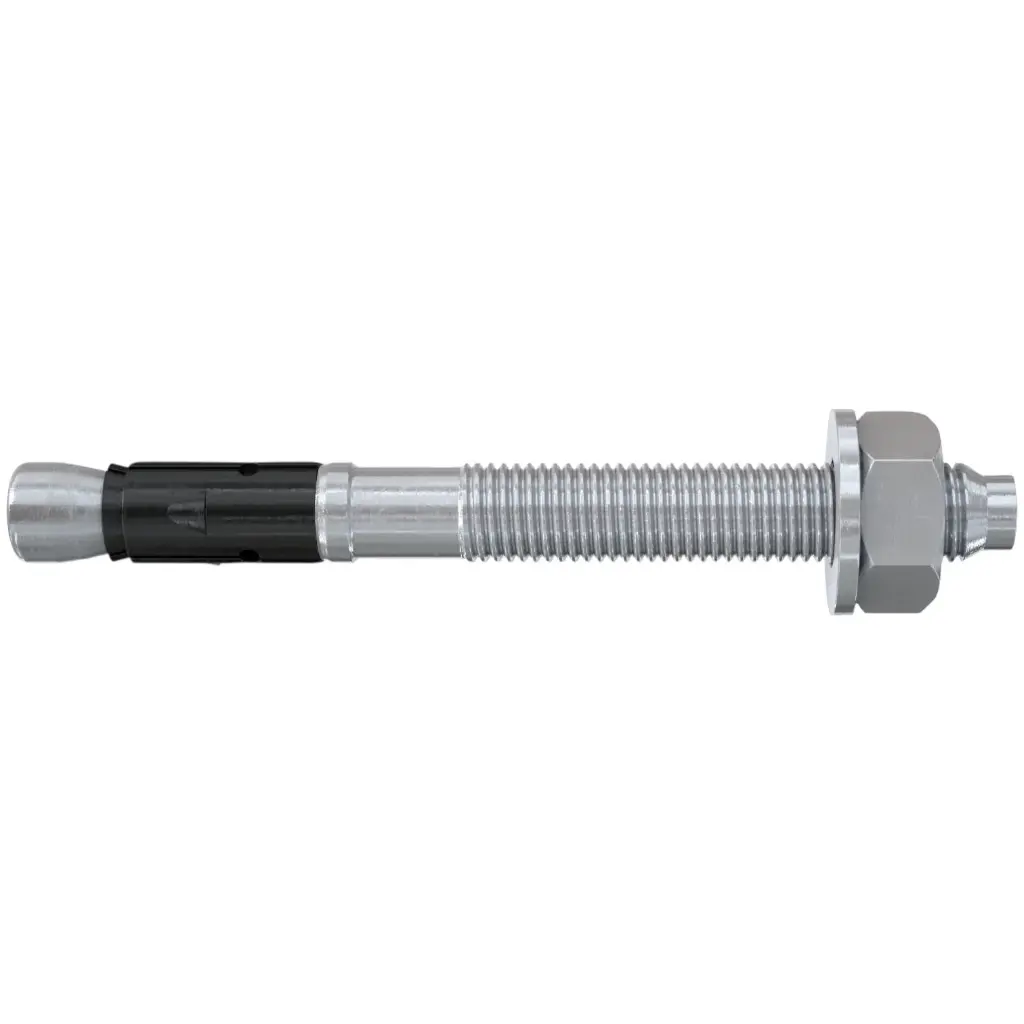

Anchor bolt FAZ II Plus 12/10 ZP, 12×110 mm. FISCHER
Product Code:
61-564586

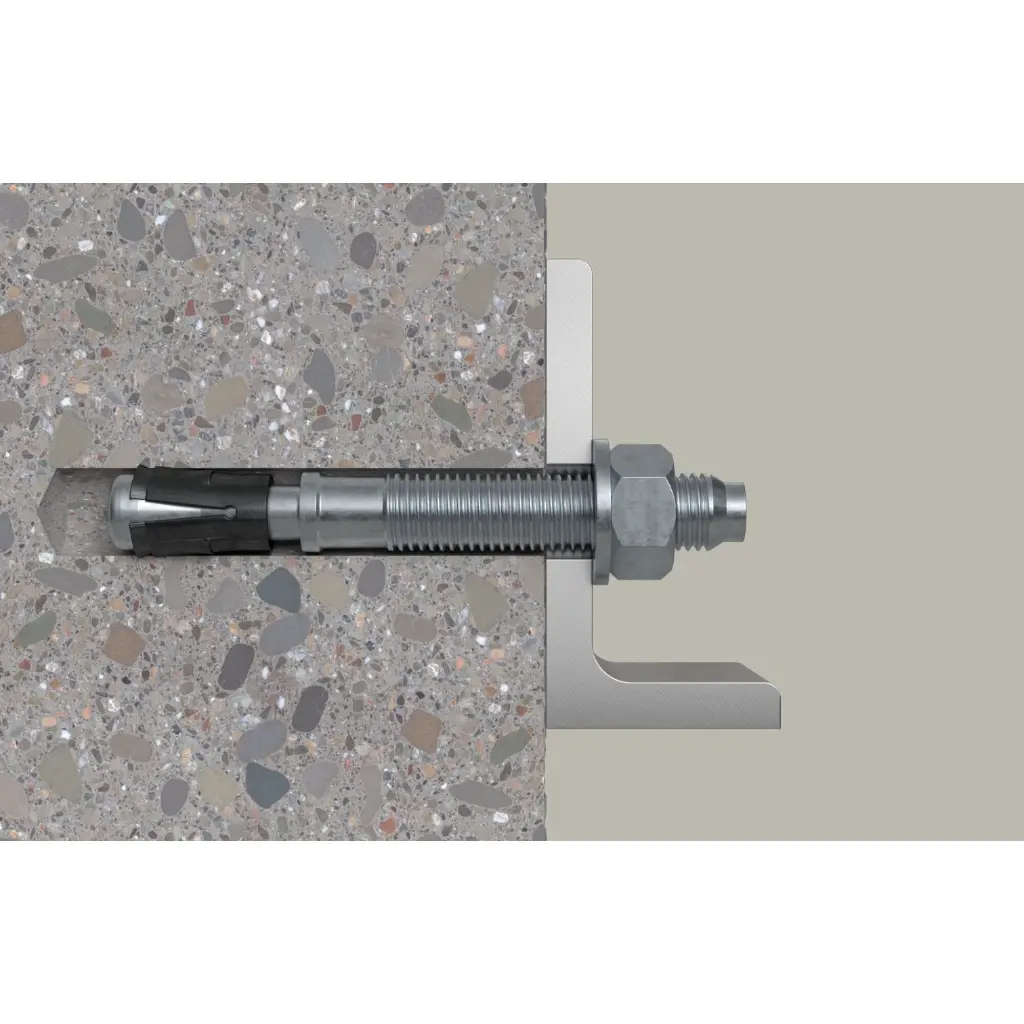

The Fischer FAZ II Plus anchor bolt is a steel anchor designed for the highest demands, featuring exceptionally high tensile load capacity and a wide range of applications. With this steel anchor, heavy loads can be fastened in cracked concrete.

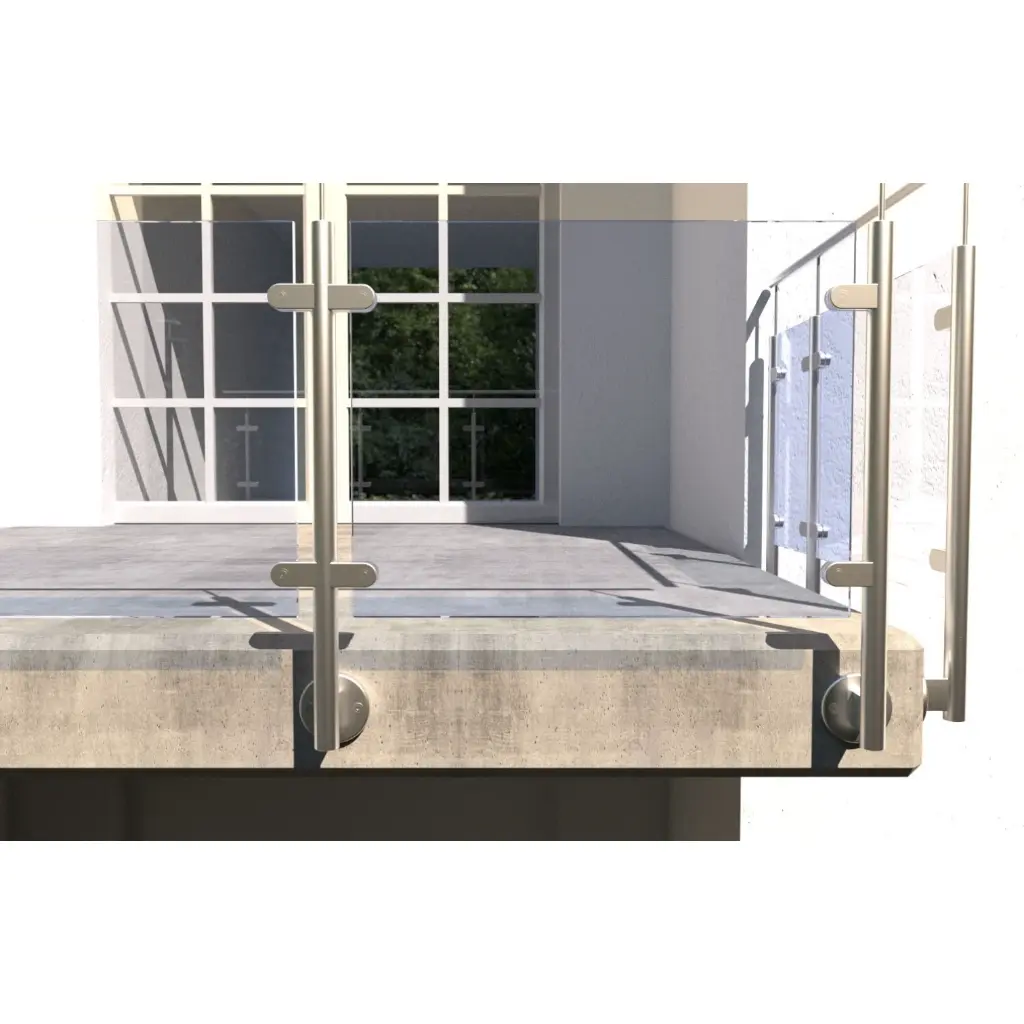

This steel anchor is especially suitable for fastening railings, cable trays, brackets, and other structures.
• Fast and easy installation without the need for drill hole cleaning (M8–M24).
• Significantly increased tensile load capacity due to the new ETA assessment – fewer fixing points and smaller anchor plates save time and costs.
• Millimetre-accurate load adjustment thanks to variable anchoring depths.
• Highest seismic load ratings for M10–M24 diameters, with or without the FFD filling disc.
This steel anchor is especially suitable for fastening railings, cable trays, brackets, and other structures.
• Fast and easy installation without the need for drill hole cleaning (M8–M24).
• Significantly increased tensile load capacity due to the new ETA assessment – fewer fixing points and smaller anchor plates save time and costs.
• Millimetre-accurate load adjustment thanks to variable anchoring depths.
• Highest seismic load ratings for M10–M24 diameters, with or without the FFD filling disc.
| Manufacturer: Fischer |
| Fastener diameter, mm: 12 |
| Fastener length, mm: 110 |
| Fastener type: Anker |
| Purpose of the fastener: Concrete, Natural stone |
| Coating: Cinkas |
Barcode:
4048962462111
Unit of Measure Name:
pak20
